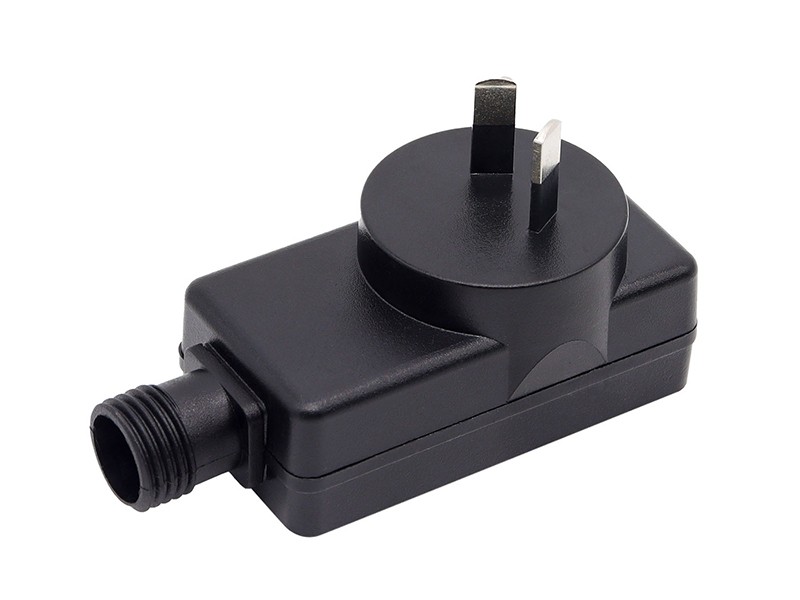

7.2W Series SAA Horizontal Normally On With Timing Function Power Supply
7.2W Series SAA Horizontal Normally On With Timing Function Power Supply

7.2W Series SAA Horizontal Normally On With Timing Function Power Supply

LED horizontal type switching power supply , normally on with timing function, meets the standard of switch power supply certification standard of SAA, Built- in LED light flashing controller has the function of overload protection ,over voltage protection ,constant voltage protection ,constant current protection and timing capabilities .Such as 8 hours on, 16 hours off, timing mode can be designed according to customer's requirements .According to the use environment, the products are divided into two categories: indoor IP20 and outdoor IP44 waterproof.Products are mainly used in LED lighting and LED decorative lights fields ,Such as Christmas lights, copper wire lights, laser lights, lawn lights, etc. This kind of power supply is also called SAA standard transformer, lamp series transformer, controller, SAA power supply, SAA transformer, LED driver, adapter, etc. This type of vertical integrated power supply with invention patent,simple operation, good waterproof effect.
Product Detail

Product useage: LED horizontal type switching power supply , normally on with timing function , meets the standard of switch power supply certification standard of SAA, Built- in LED light flashing controller has the function of overload protection ,over voltage protection ,constant voltage protection ,constant current protection and timing capabilities .Such as 8 hours on, 16 hours off, timing mode can be designed according to customer's requirements .According to the use environment, the products are divided into two categories: indoor IP20 and outdoor IP44 waterproof.Products are mainly used in LED lighting and LED decorative lights fields ,Such as Christmas lights, copper wire lights, laser lights, lawn lights, etc. This kind of power supply is also called SAA standard transformer, lamp series transformer, controller, SAA power supply, SAA transformer, LED driver, adapter, etc. This type of vertical integrated power supply with invention patent,simple operation, good waterproof effect.


Has passed the certification: the SAA standard power supply certification
SPEC:
Model No.JT-DCxVyW-G,IP20 Series
JT-DCxVyW-G-IP44,IP44 Series
SizeL x W x H :91mmx40mmx54mm
Input Voltage (Vac)220-240V~/230-240V~/100-240V~
Output Voltage (VDC)1-40VDC
Rated output Current (A) 1.5A Max
Rated Output Power (W) 7.2W Max
ApplicationLED Driver
Safety StandardsAS 61347.2.13:2018 and AS/NZS 61347.2.11:2003 with S/NZS 61347.1:2016 + A1:2018
EMC StandardsIEC 61347-2-13:2014,AMD1:2016 used in conjunction with IEC 61347-1:2015,AMD1:2017
AC PLUG ConfigurateSAA
Protection Index(IP20-IP44)Indoor/Outdoor Use
Burn In100% Full Load Burn in
Operation Temperature-20~40℃
Timing Mode6H/8H/6639H three kinds of optional, can also be customized according to customer requirements
