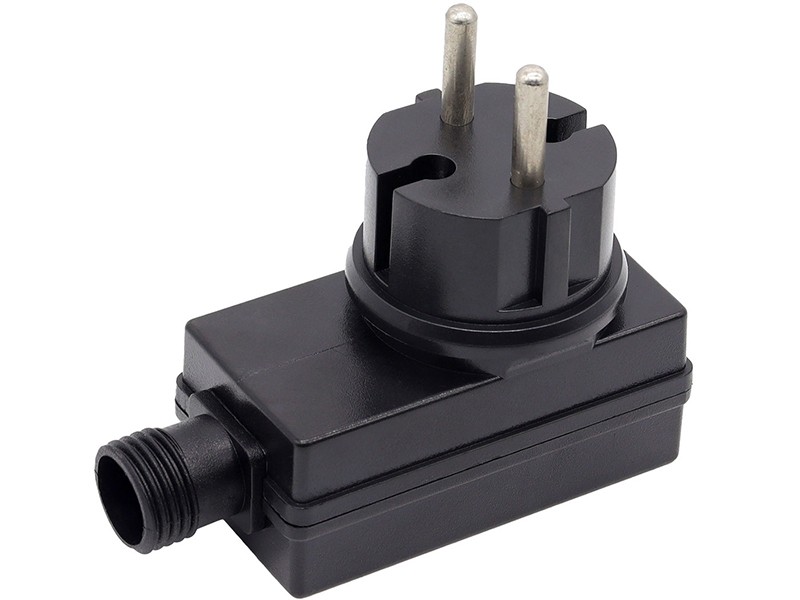

15W Series Horizontal GS/CE Switching Power Supply
15W Series Horizontal GS/CE Switching Power Supply

15W Series Horizontal GS/CE Switching Power Supply

GS/CE standard horizontal waterproof switching power supply,meets the standard of switch power supply certification standard of GS/CE, has the function of overload protection ,over voltage protection ,constant voltage protection ,constant current protection capabilities .Product can be used indoor and outdoor according to different service environment .This product is mainly applied in LED lighting ,LED decorative lights areas , such as Christmas light ,copper light ,laser light, lawn lamp etc, and it also can be used in small household appliances , communications , battery charge , motor , electrical machine fields. This power supply is also called LED driver, transformer, AC/DC adapter,GS standard waterproof transformer, GS waterproof transformer, GS standard plug, holiday lamp transformer, decorative lamp transformer, LED transformer ,etc.
Product Detail

Product useage: GS/CE standard horizontal waterproof switching power supply,meets the standard of switch power supply certification standard of GS/CE, has the function of overload protection ,over voltage protection ,constant voltage protection ,constant current protection capabilities .Product can be used indoor and outdoor according to different service environment .This product is mainly applied in LED lighting ,LED decorative lights areas , such as Christmas light ,copper light ,laser light, lawn lamp etc, and it also can be used in small household appliances , communications , battery charge , motor , electrical machine fields. This power supply is also called LED driver, transformer, AC/DC adapter,GS standard waterproof transformer, GS waterproof transformer, GS standard plug, holiday lamp transformer, decorative lamp transformer, LED transformer ,etc.


Has passed the certification: the European standard power supply certification
SPEC:
Model No.JT-DCxVyW -IP44,IP44 Series
SizeL x W x H :89mmx42mmx74mm
Input Voltage (Vac)220-240V~/230-240V~/100-240V~
Input Frequency (Hz)50-60Hz
Output Voltage (VDC)1V-40VDC
Rated output Current (A)2.5A
Rated Output Power (W) 15W Max
Special FunctionsOCP,SCP,CC,CV
HI-POT3750Vac/10mA/Min.
ACEU
MTBF50,000 HOURS AT FULL LOAD AND 25°C AMBIENT
ApplicationLED Driver
Safety CertificatedEN 60335-2-29:2004 + A2:2010 + A11:2018;EN 60335-1:2012 + A11:2014 + A13:2017 +A1:2019 + A14:2019 +A2:2019;EN 62233:2008
Safety &EMC StandardsEN IEC 55014-1:2017+A11:2020;
EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019;
EN 55104-2:2015
Protection IndexIP20-IP44(Indoor/Outdoor use)
Burn In100% Full Load Burn in
Operation Temperature-20~40℃
