UK/UKCA VERTICAL INTELLIGENT BLUETOOTH CONTROLLED POWER SUPPLY
UK/UKCA VERTICAL INTELLIGENT BLUETOOTH CONTROLLED POWER SUPPLY

UK/UKCA VERTICAL INTELLIGENT BLUETOOTH CONTROLLED POWER SUPPLY

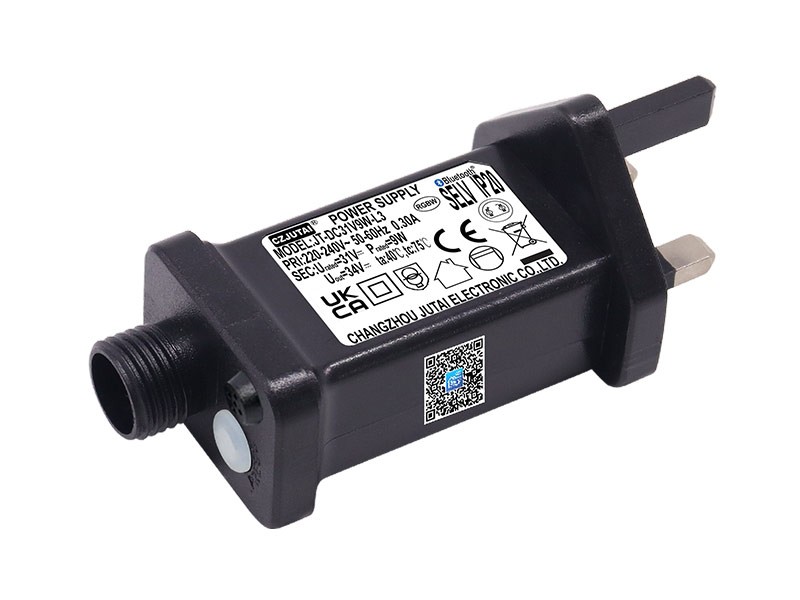

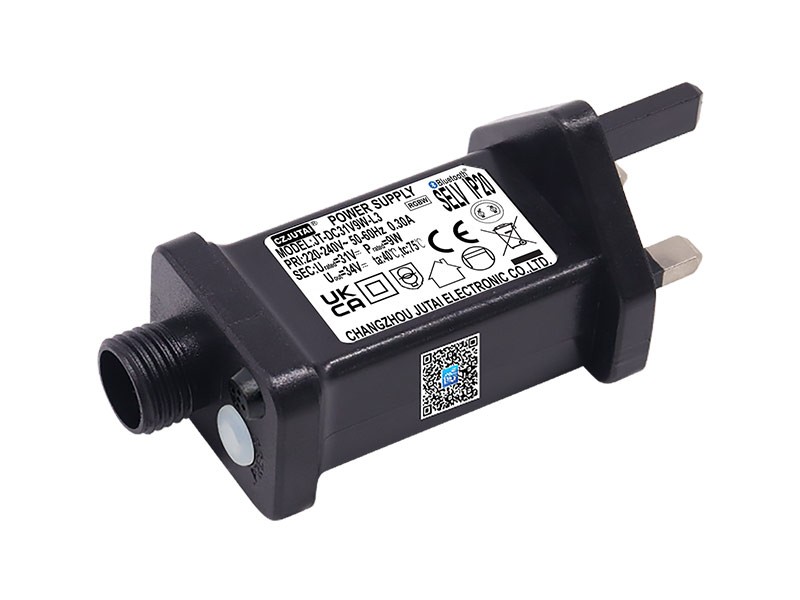

LED intelligent Bluetooth switching power supply , meets the standard of switch power supply certification standard of UKCA. This power supply was Built in LED light flashing controller, and has the function of overload protection ,over voltage protection ,constant voltage protection ,constant current protection and Bluetooth control capabilities. Through mobile phone APPS to remotely control eight functions selection, timing set and dimming set . This power supply can be used both indoor and outdoor . Products are mainly used in LED lighting and LED decorative lights fields.This kind of power supply is also called Bluetooth transformer, Bluetooth transformer, UKCA intelligent Bluetooth power supply.
Product Detail

Product Useage: LED intelligent Bluetooth switching power supply, in line with the UKCA standard switching power certification standards, built-in light string flashing controller, overload protection, overvoltage protection, constant voltage function, constant current function, Bluetooth control function, through the mobile APP software, Android system, Apple system, can realize the remote control of light changes, Including eight function selection, double color lamp 11 function, dimming, timing, music control, flashing and other functions, and can establish multiple light string group, to achieve the same group of all the light string synchronous control. The products are mainly used in LED lighting, LED decorative lights, such as Christmas lighting, copper wire lights, laser lights, laser lights, lawn lights, etc. This kind of power supply is also called Bluetooth transformer, Bluetooth transformer, Bluetooth power, etc. According to different national safety certification, can also be divided into GS, BS, SAA, UL,ETL smart Bluetooth power.


Has passed the certification: the UK/UKCA standard power supply certification

SPEC:

Model No.

JT-EL/FCxVyW-IP44,IP44 Series

Size

L x W x H:105mmx48mmx47mm

Input Voltage (Vac)

220-240V~/230-240V~/100-240V~

Output Voltage (VDC)

3-40VAC

Rated output Current (A)

1.5A Max

Rated Output Power (W)

10W Max

Application

LED Driver

Safety Standards

EN 61347-1:2015;BS EN 61347-1:2015;
EN 61347-2-13:2014 + A1:2017;
BS EN 61347-2-13:2014 + A1:2017;
EN 61347-2-11:2001 + A1:2019;
BS EN 61347-2-11:2001 + A1:2019;
EN 62493:2015;BS EN 62493:2015

EMC Standards

BS EN IEC 55015:2019+A11:2020;
BS EN IEC 61000-3-2:2019;
BS EN 61000-3-3:2013+A1:2019;
BS EN 61547:2009

AC PLUG Configurate

BS

Protection Index

(IP20-IP44) Indoor/Outdoor Use

Burn In

100% Full Load Burn in

Operation Temperature

-20~40℃

8 FUNCTIONs WITH TIMING:

FirstCombination
SecondIn Waves
ThirdSequential
FourthSLO-GLO
FifthChasing/Flash
SixthSlow Fade
SeventhTwinkle/Flash

Eighth

Steady On

With Memory Function

With memory IC, it can automatically enter the last setting section after power off

Dimming Mode

4 section dimming :100%, 75%, 50%, 25%

Timing Mode

6H/8H/6639H three kinds of optional, can also be customized according to customer's requirements
