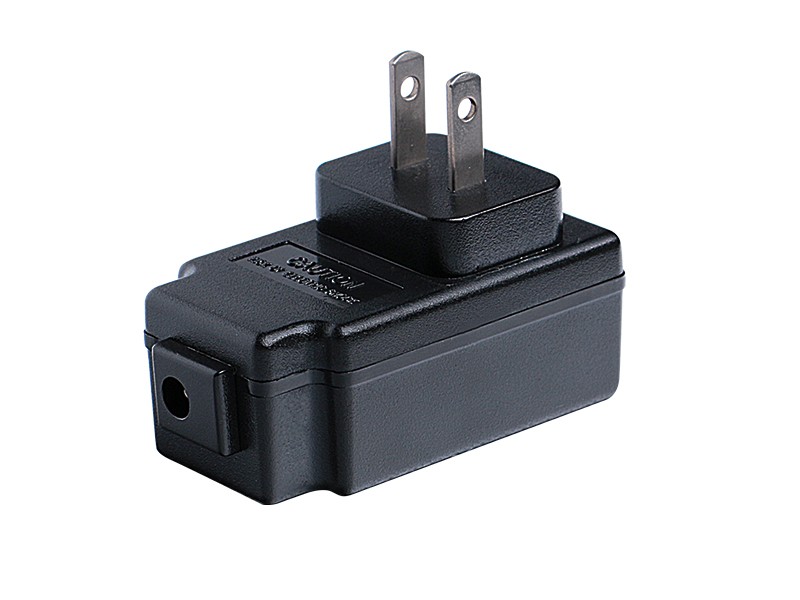

Product useage: LED vertical type switching power supply,meets the standard of switch power supply certification standard of UL/CUL etc., has the function of overload protection ,over voltage protection ,constant voltage protection ,constant current protection capabilities .Product can be used indoor and outdoor according to different service environment .At the same time ,this product is mainly applied in LED lighting ,LED decorative lights areas , such as Christmas light ,copper light ,laser light, lawn lamp etc, and it also can be used in small household appliances , communications , battery charge , motor , electrical machine fields. This power supply is also called LED driver, transformer, AC/DC adapter, festival light transformer, decorative light transformer, LED transformer,etc.
| Has passed the certification: the UL/CUL standard power supply certification |
| SPEC(产品规格)： |
| Model No.(型号） | JT-DCxxxVxxxx |
| Size（外观尺寸） | L x W x H :48.5mmx35.4mmx109.5mm |
| Input Voltage (Vac)（输入电压） | 120V~ |
| Input Frequency (Hz)（输入频率） | 50-60Hz |
| Output Voltage (VDC)（输出电压） | 3-30VDC |
| Rated output Current (A) (输出电流） | 1.5A Max. |
| Rated Output Power (W) （输出功率） | 6W Max. |
| Application（应用领域） | LED Driver |
| Safety Standards(安规标准） | UL&CUL1310,UL&CUL2749 |
| Protection Index（防护指数） | Indoor Use |
| Burn In（烧机老化） | 100% Full Load Burn in |
| Operation Temperature（工作温度） | -20~40℃ |
