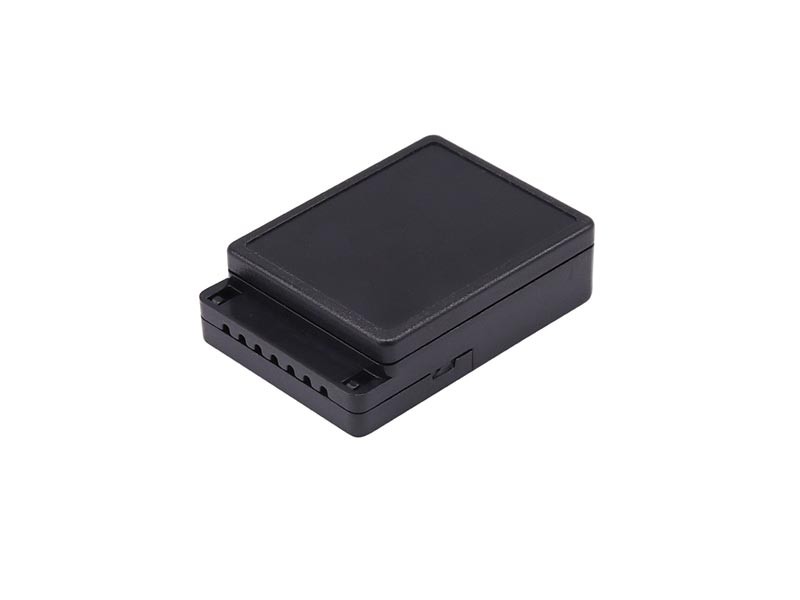

Infrared Independent ControllerⅠ
Infrared Independent ControllerⅠ

Infrared Independent ControllerⅠ

Through serial connection to the lamp lighting, control the flashing mode of the lighting. It has eight functions to choose, timing function, can also be customized according to customer requirements, can also be designed into the timing control mode. Mainly used in LED decorative lamp string and other fields.
support@jutai.com
Inquiry Now
//en.jutai.com/uploadfiles/211.149.195.244/webid527/source/202205/165277553865.jpg
Product Detail

Product useage:Through serial connection to the lamp lighting, control the flashing mode of the lighting. It has eight functions to choose, timing function, can also be customized according to customer requirements, can also be designed into the timing control mode. Mainly used in LED decorative lamp string and other fields.


SPEC：

Model No.

JT-EF/FCxVDC1*xmA-B-IP20,IP44 Series

Size

L x W x H :56mmx39mmx16mm

Input Voltage (VDC)

3-40VDC

Output Voltage (VAC)

3-40VAC

Max.output Current (A)

0.01-1A

EMC Standards

IEC55015,IEC61547,IEC61000-3-2,IEC61000-3-3,IEC62493

Protection Index

IP20-IP44(Indoor/Outdoor use)

Burn In

100% Full Load Burn in

Operation Temperature

-20~40℃

Remote distance

20-25m

Functions optional

Functional mode can be designed according to customer requirements
